Design

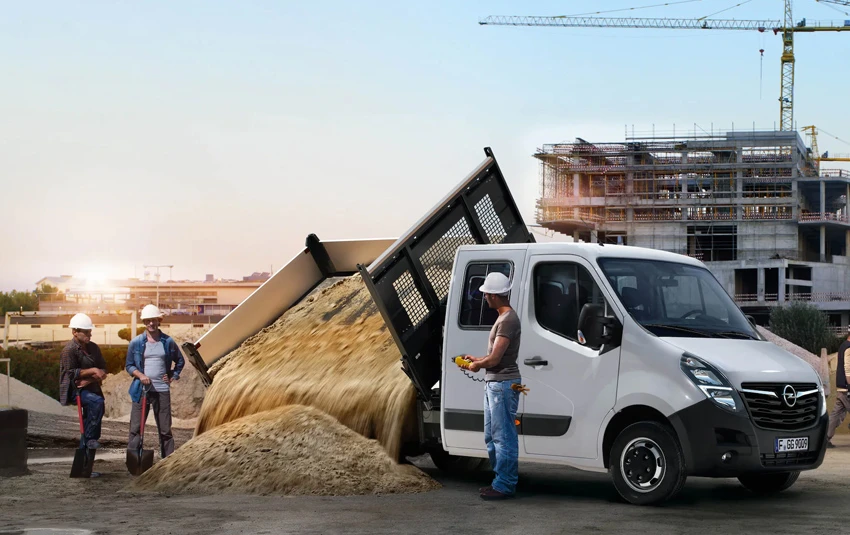

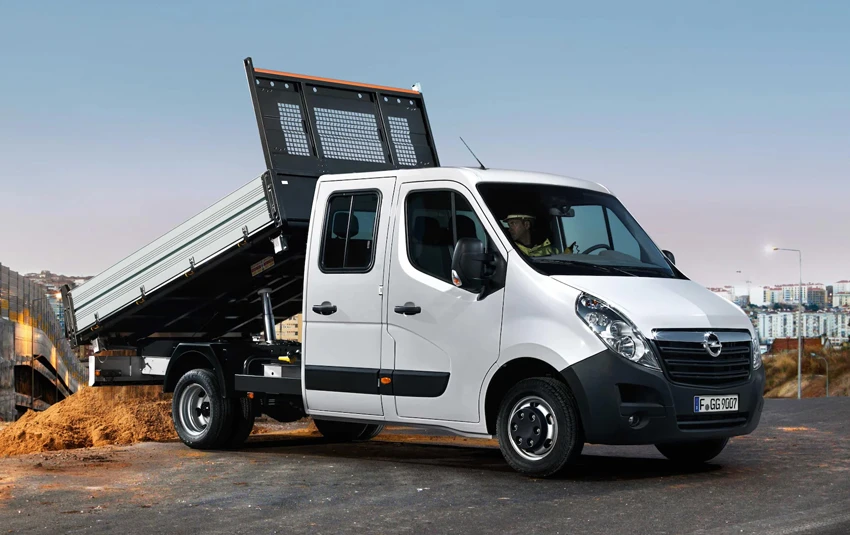

Movano Tipper features a five-stage chrome-plated underfloor ram and 50° tip angle. The tipping mechanism employs a high-performance, 2kW electro-hydraulic power pack which can be easily operated by one person, using hand-held controls on a wander lead.

Movano features:

• Load length 3,205mm
• GVW 3,500kg
• Front-wheel drive
• Chassis Cab or Crew Cab models
• Payload of up to 1349kg on 3.5 tonne models.

Tipper features:

• Tipper platform width 2040mm, length up to 3205mm
• Steel platform and front panel, powder-coated in dark grey
• Cab protection including ladder frame
• Remote tipping control with cab-mounted, spiral wander lead
• Side under-run bars
• Top and bottom hinged tailboard
• Double-skinned removable anodised aluminium side- and tailboards
• Gantry lugs for ladder restraint
• 'Tipper in action' warning buzzer
• Power pack isolation switch
• Protection grilles for rear light units (optional)
